Cocoa Powder Production Line

Fully automated cocoa powder production line is primarily designed to process cocoa beans through various stages into cocoa nibs, cocoa liquor, cocoa butter, and cocoa powder. Modular equipment can be freely combined and matched according to customer needs, with capacity ranging from 10kg/h to 2000kg. The entire process from bean to powder is fully automated, ensuring consistent product quality.

FULLY AUTOMATIC COCOA POWDER PRODUCTION LINE EQUIPMENT：

Production Process: cocoa beans—stone removal—roasting—peeling—picking—grinding paste—extracting oil—crushing—pulverizing

Question 2-Product Parameter

COCOA BEAN PROCESSING LINE EQUIPMENT

1-Fresh Cocoa Pods Cutting and Splitting Machine

Introduction：This machine is primarily used to cut fresh cocoa pods in half and harvest the cocoa beans. It uses a conveyor belt to transport the pods to the cutting blades for halving, and then utilizes a rotating drum sieve to separate and sift the cocoa beans from the pod shells.

Product Name	Cocoa Pods Cutting Machine	Cocoa Pods Shelling Machine
Usage	Used for cutting fresh cocoa pods into two halves	Used for separating cocoa pods from cocoa beans
Capacity	800kg/h	1000kg/h
Power	0.75kw	1.1kw
Voltage	380V 50Hz or Customized	380V 50Hz or Customized
Machine Size	1.6×0.6×2m	2.8×1.1×1.7m
Weight	150kg	400kg

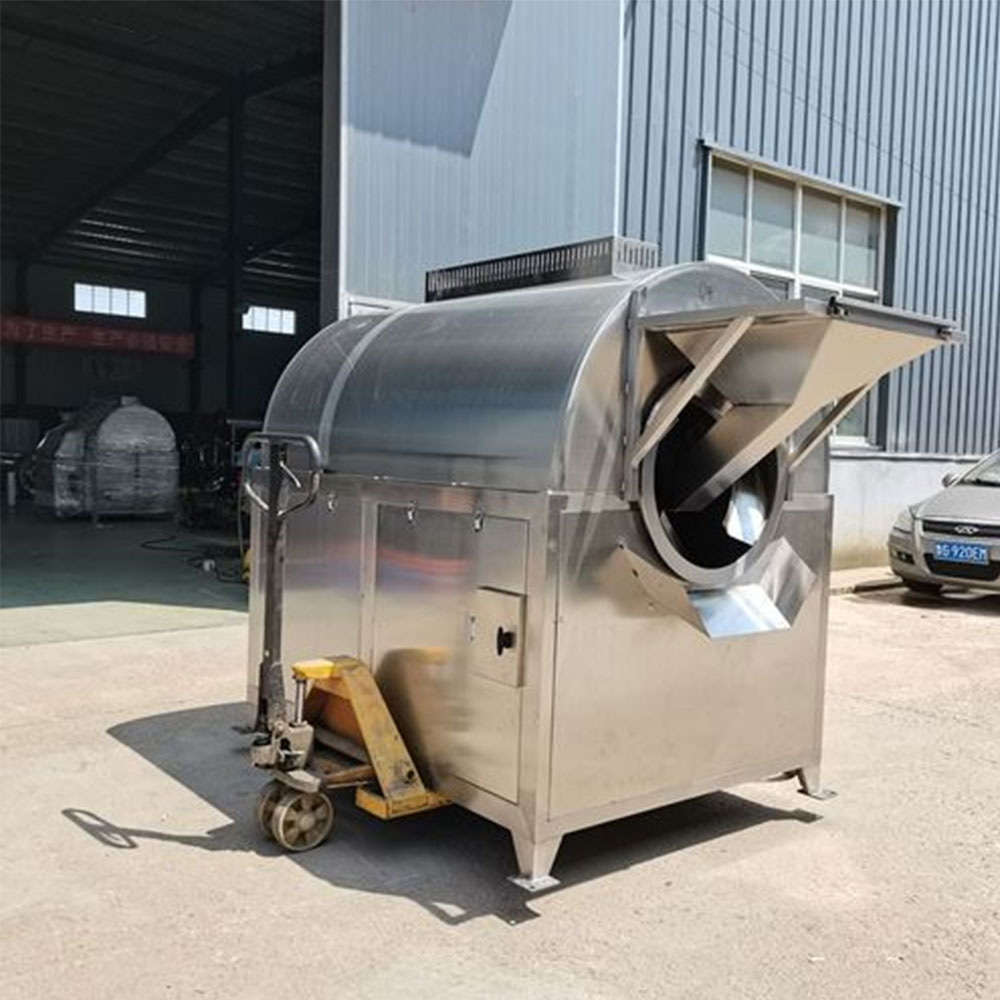

2-Cocoa Beans Roasting Machine

Introduction：Made of stainless steel 304; heating by electricity and gas ; The cocoa roasting machine is with automatic temperature control and timing device, and the temperature can be adjusted freely between 0-300 degrees according to the required temperature of the material.

Model	Capacity	Motor Power	Heating Power
OT-ER50	50kg/h	1.1kw	18.5kw
OT-ER75	150kg/h	1.1kw	22kw
OT-ER100	200kg/h	1.1kw	26kw
OT-ER150	300kg/h	1.1kw	33kw

Remarks：Customizable for larger production capacities to meet your business needs.

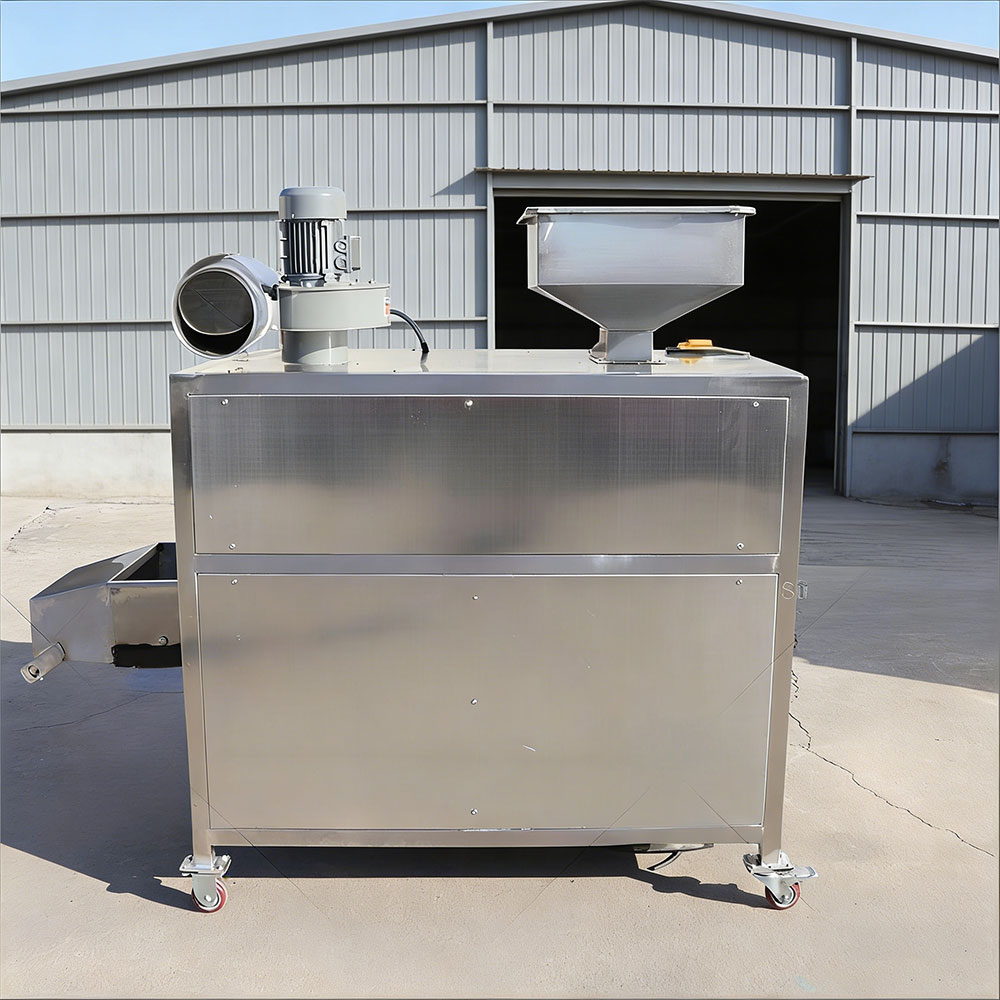

3-Cocoa Bean Pelling Machine

Working Principle：Cocoa beans are fed into the hopper for uniform distribution and then pass between rollers that remove the husks through a rubbing action. A fan uses airflow to suction the detached husks out of the machine and into a cyclone collector for storage, while the peeled cocoa nibs are discharged through the outlet. Complete separation of husks and nibs is achieved by adjusting the airflow intensity and the gap between the peeling rollers.

Model	Capacity	Motor Power	Fan Power
OT-CP100	50-100kg/h	0.4kw	0.37kw
OT-CP200	200kg/h	0.75kw	0.55kw
OT-CP300	300kg/h	0.75kw	1.5kw
OT-CP500	400-500kg/h	1.1kw	2.2kw
OT-CP500	1000kg/h	4.4kw	2.2kw

Remarks：Customizable for larger production capacities to meet your business needs.

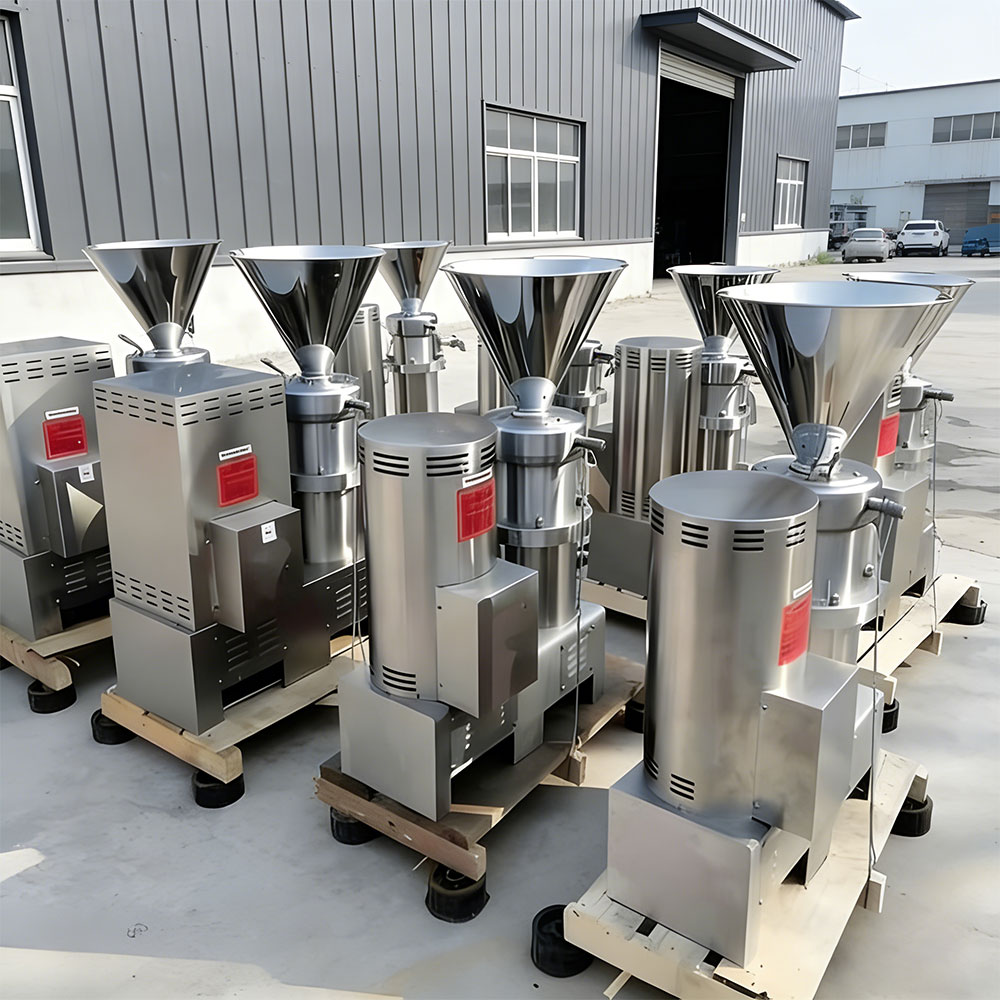

4-Cocoa Sauce Colloid Mill

Cocoa Bean Colloid Mill Machine Introduction：

Product Name：Cocoa Nibs Colloid Mill Machine

Raw Material：Cocoa Nibs

Output Product：Cocoa Liquor（Cocoa Mass）

The cocoa bean colloid mill machine is specially designed for ultra-fine wet grinding of cocoa beans, transforming roasted cocoa nibs into smooth cocoa liquor with excellent fineness, uniformity, and flavor retention. As an automatic cocoa bean colloid mill machine, it integrates crushing, emulsifying, homogenizing, and mixing into one continuous process, making it a key unit in cocoa and chocolate processing lines.
Cocoa Nibs Grinding Machine/Cocoa Liquor Making Machine/Cocoa Processing Machines/Cocoa Nibs Grinder/Colloid Mill/Cocoa Bean to Cocoa Mass

Model	Capacity(t/h)	Motor Power	Hopper Volume
OT-CM50	0.3t/h	1.5kw	3L
OT-CM80	0.5t/h	4kw	8L
OT-CM110	0.1-1.2t/h	7.5kw	8L
OT-CM130	0.3-2t/h	11kw	15L
OT-CM160	0.5-3t/h	15kw	15L
OT-CM180	0.8-6t/h	18.5kw	15L
OT-CM210	1-8t/h	30kw	24L
OT-CM240	2-15t/h	45kw	24L
OT-CM300	6-20t/h	75kw	48L

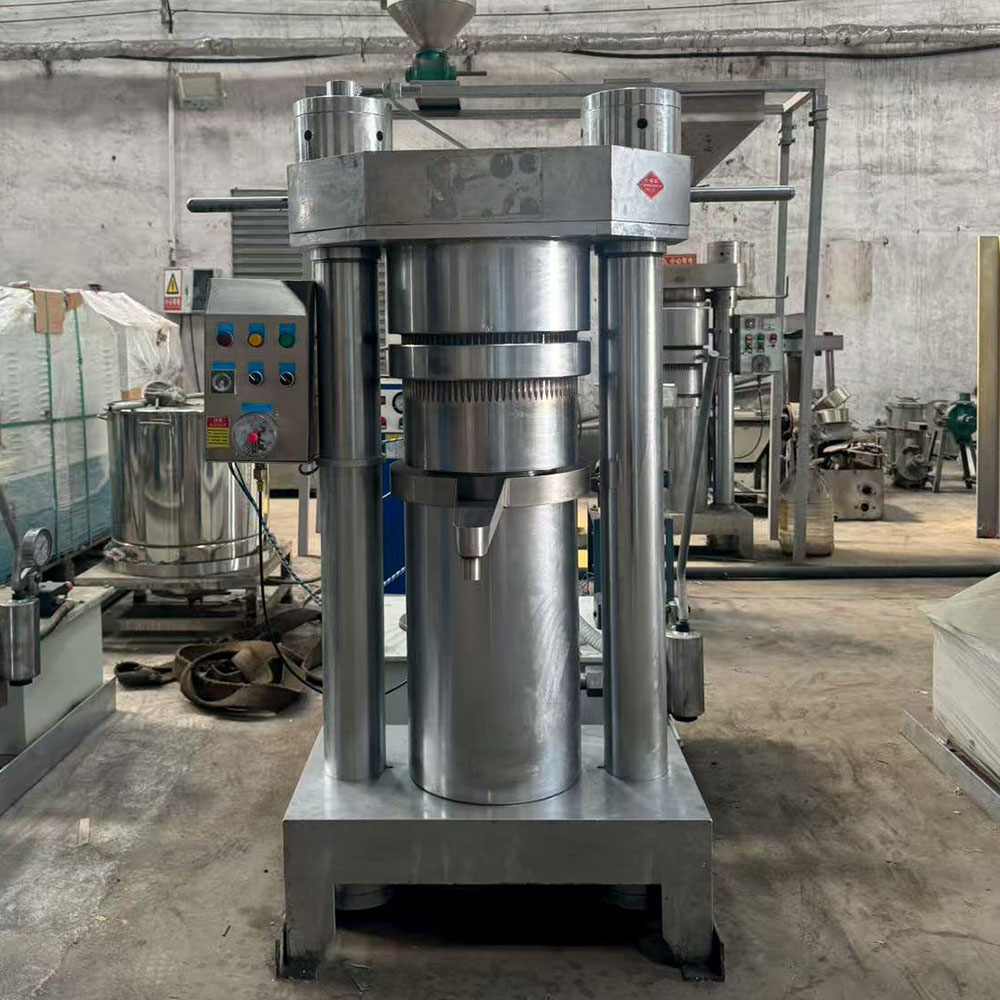

5-Cocoa Butter Press Machine

Oil Press Introduction：

Product Name：Hydraulic Oil Press Machine

Raw Material：Cocoa Liquor（Cocoa Mass）

Output Product：Cocoa Butter and Cocoa Cake

Cocoa Butter Press Machine/Hydraulic Extraction Machine/Cold Press Oil Machine/Oil Press/Oil Expeller/Cocoa Liquor Press
Cocoa butter press machine is a high-pressure mechanical system used to separate liquid cocoa butter from solid cocoa matter. It processes heated, liquid cocoa liquor (the paste produced by colloid mill) by squeezing it against precision filtration screens. It is necessary equipment for making cocoa butter and cocoa powder.
The pressing process yields two distinct products: pure cocoa butter and a compressed solid disc called a cocoa press cake, which is later pulverized to create cocoa powder.

Model	Capacity(kg/h)	Barrel Capacity	Moter Power
OT-150	12kg/h	2kgs	0.75kw
OT-180	20kg/h	4kgs	1.5kw
OT-230	40kg/h	8kgs	1.5kw
OT-260	60kg/h	12kgs	1.5kw
OT-320	70kg/h	17.5kgs	2.2kw
OT-360	90kg/h	22.5kgs	2.2kw
OT-415	120kg/h	30kgs	2.2kw
OT-460	180kg/h	45kgs	3kw

6-Cocoa Powder Coarse Mill Machine

Cocoa Cake Coarse Crusher Machine Introduction：

The cocoa cake coarse grinder is specialized equipment used in cocoa powder production lines. It breaks down hard, pressed cocoa cakes into small chunks or granules, preparing the material for subsequent fine grinding and pulverization.

Working Principle: Cocoa raw material enters the grinding chamber through the top feeder. It undergoes cutting and grinding by rotating and stationary blades, and is then automatically discharged via the centrifugal force generated by the rotating assembly.

Model	Capacity(kg/h)	Voltage	Moter Power
OT-CC150	80-150kg/h	220V	2.2kw
OT-CC250	120-280kg/h	380V	4kw
OT-CC400	200-400kg/h	380V	7.5kw
OT-CC600	300-500kg/h	380V	15kw
OT-CC800	500-1000kg/h	380V	22kw
OT-CC100	800-2000kg/h	380V	30kw

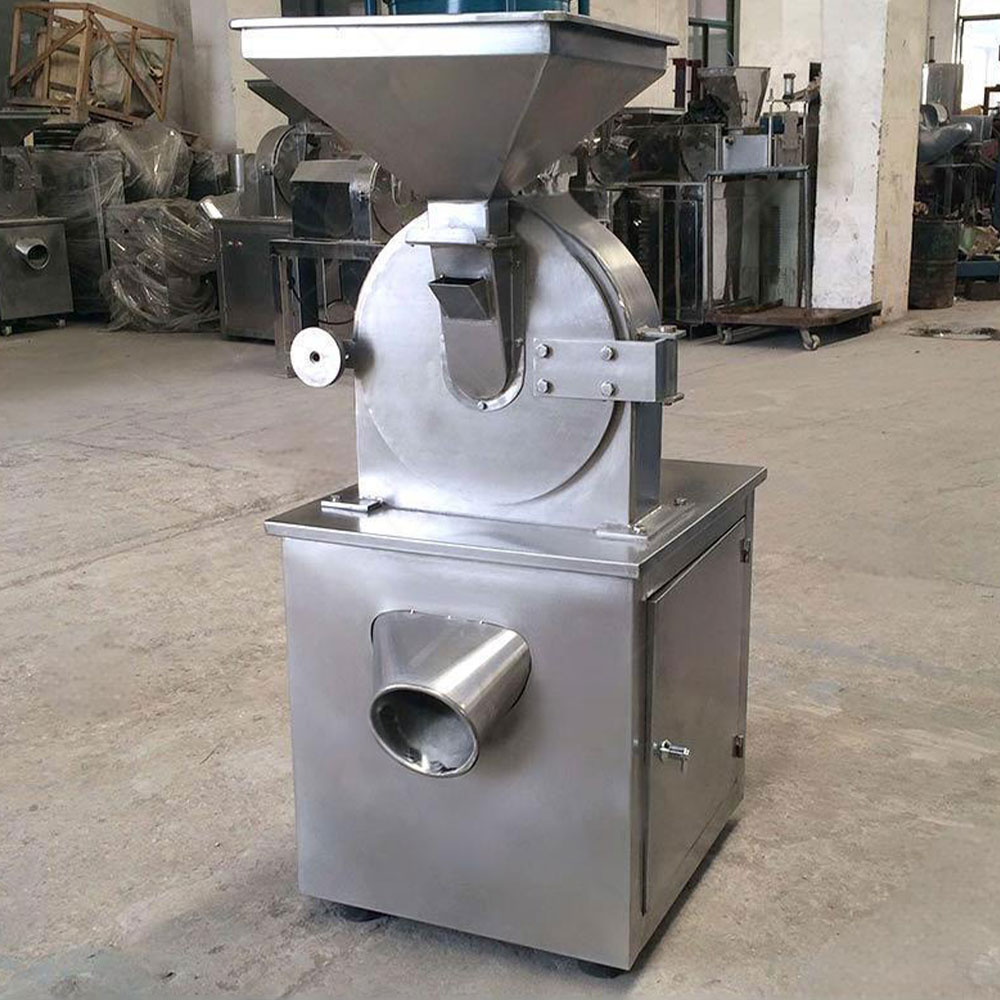

7-Cocoa Powder Making Machine

Cocoa Cake Coarse Crusher Machine Introduction：

Cocoa powder grinder utilizes the relative motion between a rotating toothed disc and a stationary toothed disc; through the combined effects of impact, friction, and shearing—as well as collisions between the particles themselves—it further grinds coarsely crushed cocoa cake particles into ultrafine cocoa powder. The fineness of the resulting powder can be adjusted by varying the mesh size of the screen.

Model	Capacity(kg/h)	Grinding Fineness	Moter Power
OT-PM20	20-150kg/h	30-150Mesh	3kw
OT-PM24	50-300kg/h	30-150Mesh	5.5kw
OT-PM28	80-500kg/h	30-150Mesh	11kw
OT-PM36	150-800kg/h	30-150Mesh	15kw
OT-PM42	200-1200kg/h	30-150Mesh	18.5kw
OT-PM50	300-1500kg/h	30-150Mesh	30kw
OT-PM80	800-2000kg/h	30-150Mesh	45kw

If you want to know the specific quotation of the production line you need, please send us your production requirements.

Question 3-Product Display

OUR ADVANTAGES:

✅ High-efficiency automation : Automated production from cocoa beans to cocoa powder reduces costs and enhances efficiency.

✅ Smart Thermoregulation System : Ensures constant temp in roasting & grinding, perfectly preserving nutrients and flavor.

✅ Process Guidance : Mastering processing techniques, we provide services and training to enable clients to successfully produce their desired cocoa powder.

✅ Flexible Customisation: Modular production line design allows for free combination and configuration according to client requirements.

✅ Safety and Reliability: Equipment operates stably with low maintenance costs and high safety performance, ensuring continuity and reliability throughout the production process.

Send Inquiry

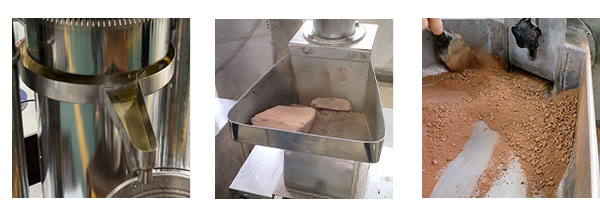

Cocoa production line

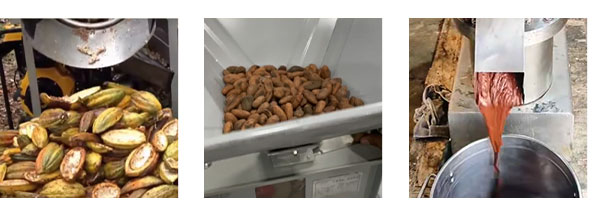

Cocoa production line

Question 4-Application

COCOA POWDER PRODUCTION LINES ARE EXTENSIVELY UTILISED IN:

Food processing plants: Mass production of cocoa powder to meet raw material demands for chocolate, beverages, baking and related industries.

Snack food enterprises: Developing functional cocoa powder products such as low-sugar and sugar-free variants to capture the health food market.

Pharmaceutical and health supplement sectors: Producing high-purity cocoa powder for functional food and health supplement development.

For further details or bespoke solutions, please contact us – we shall be delighted to assist!

Question 5-FAQ

Q1: What is the MOQ for your machine?

A: Our MOQ is 1 sets. And any order quantities are highly appreciated.

Q2: Can I get a sample of your machine?

A: Yes, surely, we would like to provide the sample, you just pay for the sample and delivery prime cost.

Q3: What is your guarantee period for your machine?

A: Our machine guarantee period is 12 months, and we also provide 24 hours on-line service if any problems happen.

Q4: Do you accept OEM & ODM?

A: Yes, OEM & ODM projects are available. You are warmly weclome to have your own color, logo, company name, contacts and any design on the machine. Even we are willing to design the color, logo, packages for you.

Q5: Can I test your machine with the raw material when visiting your factory?

A: Yes, surely, any testing our machine with the raw material is highly appreciated.

Q6: What payment do you accept?

A: We accept T/T,Western Union,Paypal,L/C,etc.Normally you need pay 30% deposit in advanced,70% balanced before shipping.

Q7: What's the production time?

A:Usually 5-7 days for MOQ.Other quantity and OEM orders please confirm with us.

Question 6-Our service

OUR ADVANTAGES:

1: Integrated Production and Trade with Quality Control

We own a modern production base and independently research and manufacture core components. Every stage, from raw material selection to processing, undergoes strict quality control.

2: Complete Product Range and Comprehensive Coverage

We offer screw-type, hydraulic, and fully automatic oil presses to meet the needs of different oilseed crops, production capacities, and process flows, and support customized fully automated production lines.

3: Advanced Technology and Customized Solutions

We provide personalized solutions based on your factory space, raw material characteristics, budget, and target output, truly offering a "one-factory, one-solution" approach.

4: Global Service and Full-Cycle Support

We provide comprehensive technical guidance, including factory planning, equipment installation, commissioning, and operation training.
