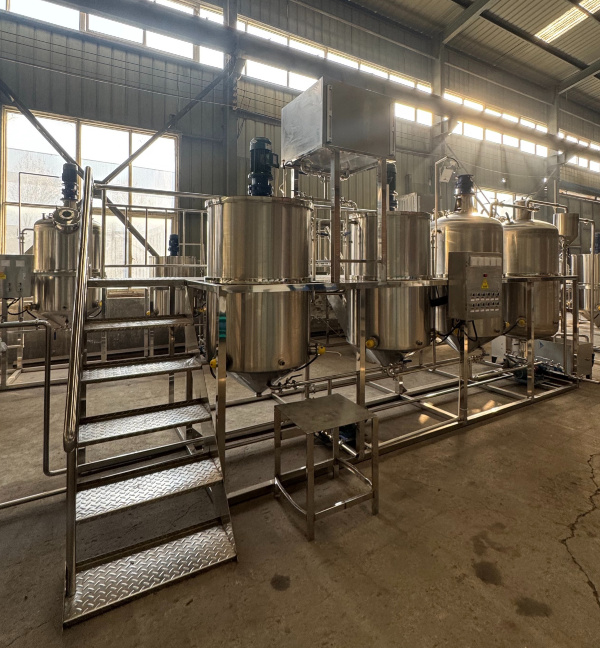

Four-tank Oil Refining Equipment

Oil refining equipment is a mechanical device used to process crude vegetable oils and animal fats. Through processes such as solvent removal, degumming, deacidification, decolorization, deodorization, deesterification, and dewaxing, impurities are removed to ensure the oil meets national edible standards. Depending on the refining process, it is classified into large, medium, and small types, as well as intermittent, semi-continuous, and fully continuous types, with daily processing capacities ranging from 1 to 1000 tons, suitable for oil processing plants of different sizes.

WORKING PRINCIPLE:

Refining equipment works by purifying crude oil to make it safe and suitable for consumption. It starts with removing impurities like phospholipids through hydration, neutralizing acids with alkali, and then removing excess water and coloring with clay. Next, the oil is deodorized to eliminate odors and heated to prevent spoilage. Finally, filtration ensures a clear and pure end product ready for cooking and other uses.

EQUIPMENT FEATURES:

High-quality materials:  Mostly made of 304 stainless steel, complying with food hygiene standards, corrosion-resistant, and rust-proof, ensuring the quality and safety of the oil.

Complete functions:  Capable of performing degumming, deacidification, drying, and decolorization of crude oil, ensuring that the peroxide value, odor, and other indicators of the finished oil meet national standards.

Easy operation:  Some equipment operating data is displayed by instruments, making operation simple and highly safe.

OIL REFINING EQUIPMENT VIDEO：

If you would like to learn more about oil refining machinery, Please Click Here to contact Henan Oliver Technology Co., Ltd. We are dedicated to serving you!

Question 2-Product Parameter

OIL REFINING EQUIPMENT

Model	Refining Capacity	Tank Count	Tank Diamter	Power	Refining Function
OT-300D-1	600kg/day	1	700mm	20kw	Depdprozation
OT-300D-2	600kg/day	2	700mm	26kw	Degumming/Deacidification/Dehydration/Decolourisation
OT-500L	500kg/day	3	700mm	38.5kw	Degumming/Deacidification/Dehydration/Decolourisation
OT-1000L	1000kg/day	4	700mm	50kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization
OT-2000L	2000kg/day	4	900mm	72kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization
OT-3000L	3000kg/day	4	1100mm	132kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization

Remarks：According to the client raw material and capacity, support customized service, large model heating method support conduction oil heating, can choose electric, coal and gas, details please contact customer us directly.

Question 3-Product Display

PRODUCT FUNCTION:

Dephosphorization, deacidification, dehydration, decolorization, de-alkali odor removal, and secondary slag removal.

✅ Degumming: To remove phospholipids, gums, proteins, and mucilaginous substances from crude oil.

✅ Deacidification: To remove free fatty acids from the oil.

✅ Bleaching : To remove color pigments (e.g., chlorophyll, carotenoids) from the oil.

✅ Deodorizing : To remove volatile substances that cause undesirable odors and flavors from the oil.

✅ Dewaxing/Winterization：To remove high-melting-point waxes and solid fats from the oil.

Send Inquiry

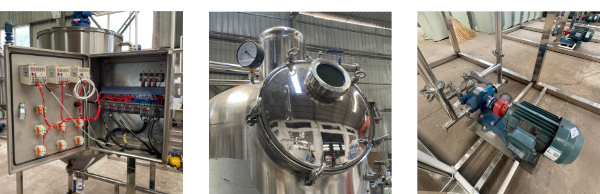

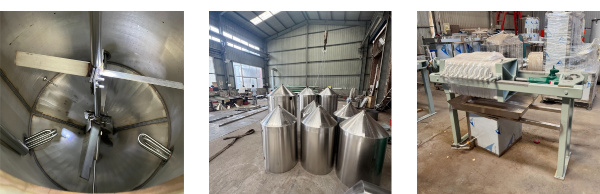

Oil Refining Equipment Details

Oil Refining Equipment Details

Question 4-Application

APPLICATION OF OIL REFINING EQUIPMENT:

Widely used in the food processing industry.

Refined crude oils:soybean oil, rapeseed oil, peanut oil, cottonseed oil, sunflower seed oil, sesame oil, flaxseed oil, safflower seed oil, camellia seed oil, rice bran oil, corn germ oil, palm oil, coconut oil, olive oil, cocoa butter, castor oil, tung seed oil, and other oilseeds.
