Cocoa Oil Deodorizing Tank

Cocoa butter deodorization tank is specialized refining equipment that uses high-temperature steam distillation under vacuum to remove strong flavors, odors, and free fatty acids (FFAs), creating a neutral, off-white butter ideal for cosmetics, chocolate, and baking.

Working Principle：

The deodorization tank mainly uses the principle of steam distillation. Under vacuum conditions, steam is introduced into the cocoa butter. Since the vapor pressure of odoriferous substances in cocoa butter is higher than that of triglycerides, the odoriferous substances are vaporized and escape with the steam, thereby achieving the purpose of deodorization.

If you would like to learn more about edible oil deodorization processes or other edible oil refining processes, please contact Henan Olive Technology Co., Ltd. We will be happy to serve you!

Question 2-Product Parameter

OIL REFINING EQUIPMENT

Model	Refining Capacity	Tank Count	Tank Diamter	Power	Refining Function
OT-300D-1	600kg/day	1	700mm	20kw	Depdprozation
OT-300D-2	600kg/day	2	700mm	26kw	Degumming/Deacidification/Dehydration/Decolourisation
OT-500L	500kg/day	3	700mm	38.5kw	Degumming/Deacidification/Dehydration/Decolourisation
OT-1000L	1000kg/day	4	700mm	50kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization
OT-2000L	2000kg/day	4	900mm	72kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization
OT-3000L	3000kg/day	4	1100mm	132kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization

Remarks：According to the client raw material and capacity, support customized service, large model heating method support conduction oil heating, can choose electric, coal and gas, details please contact customer us directly.

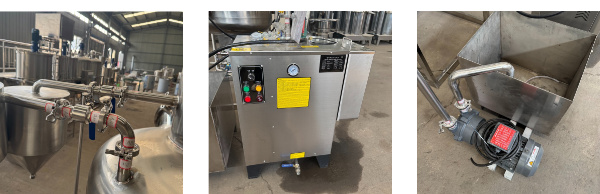

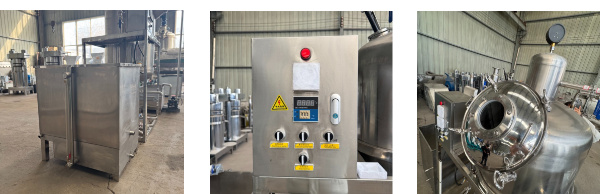

Question 3-Product Display

DEODORIZATION PROCESS:

✅ Loading: De-aerated, bleached cocoa butter is pumped into the evacuated deodorizer.

✅ Deodorization: The butter is heated to the target temperature (e.g., 230°C) under full vacuum. Stripping steam is vigorously sparged through the oil for a set time (2-4 hours, depending on batch size and specs). This is the main stripping period.

✅ Cooling : Steam is stopped, and the oil is cooled via the internal cooling coil while still under vacuum.

✅ Discharge : The refined, deodorized cocoa butter is pumped out under vacuum to a storage tank.

Send Inquiry

Oil Deodorizing Tank

Oil Deodorizing Tank

Question 4-Application

APPLICATION SCENARIOS:

1. Large-scale industrial-grade cocoa butter production: Suitable for professional oil processing companies to mass-produce pure cocoa butter (including natural and deodorized cocoa butter), meeting the large-scale supply needs of the food industry for basic cocoa butter raw materials. 2. Chocolate and confectionery manufacturing: Removes off-flavors from cocoa butter while preserving the pure cocoa aroma, ensuring a pure and consistent flavor in chocolates and candies. 3. Baking and dairy processing: Improves the compatibility of cocoa butter with other ingredients, enhancing product flavor without creating conflicts. 4. Pharmaceutical and cosmetics industries: Deodorizing and purifying cocoa butter to meet the purity and stability requirements of raw materials in the pharmaceutical and cosmetics industries.

Question 5-FAQ

Q1: What is the MOQ for your machine?

A: Our MOQ is 1 sets. And any order quantities are highly appreciated.

Q2: Can I get a sample of your machine?

A: Yes, surely, we would like to provide the sample, you just pay for the sample and delivery prime cost.

Q3: What is your guarantee period for your machine?

A: Our machine guarantee period is 12 months, and we also provide 24 hours on-line service if any problems happen.

Q4: Do you accept OEM & ODM?

A: Yes, OEM & ODM projects are available. You are warmly weclome to have your own color, logo, company name, contacts and any design on the machine. Even we are willing to design the color, logo, packages for you.

Q5: Can I test your machine with the raw material when visiting your factory?

A: Yes, surely, any testing our machine with the raw material is highly appreciated.

Q6:What payment do you accept?

A:We accept T/T,Western Union,Paypal,L/C,etc.Normally you need pay 30% deposit in advanced,70% balanced before shipping.

Q7:What's the production time?

A:Usually 5-7 days for MOQ.Other quantity and OEM orders please confirm with us.

Question 6-Our service

OUR ADVANTAGES:

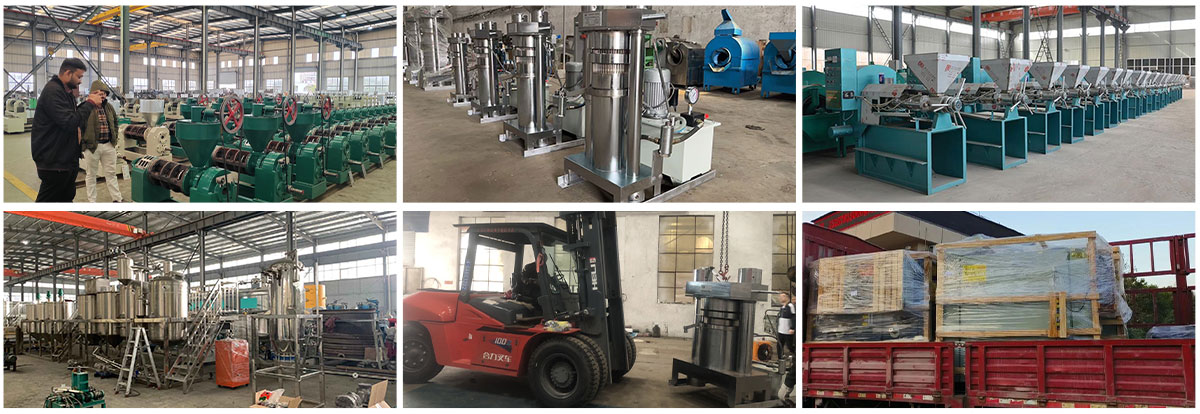

1: Integrated Production and Trade with Quality Control

We own a modern production base and independently research and manufacture core components. Every stage, from raw material selection to processing, undergoes strict quality control.

2: Complete Product Range and Comprehensive Coverage

We offer screw-type, hydraulic, and fully automatic oil presses to meet the needs of different oilseed crops, production capacities, and process flows, and support customized fully automated production lines.

3: Advanced Technology and Customized Solutions

We provide personalized solutions based on your factory space, raw material characteristics, budget, and target output, truly offering a "one-factory, one-solution" approach.

4: Global Service and Full-Cycle Support

We provide comprehensive technical guidance, including factory planning, equipment installation, commissioning, and operation training.
