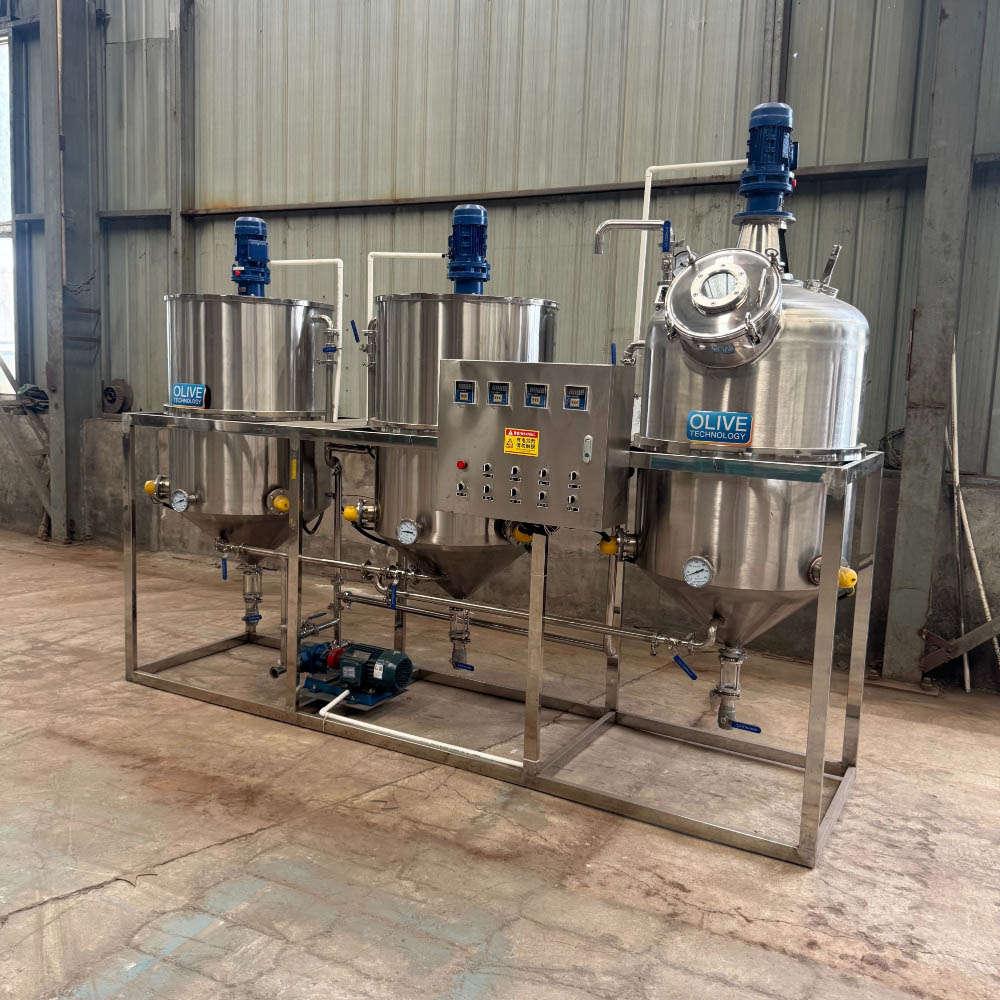

Three-tank Oil Refining Equipment

Designed specifically for small and medium-sized oil mills, this equipment utilizes a compact three-tank process of "dephosphorization, deacidification, dehydration, and decolorization" to progressively remove phospholipids, free fatty acids, pigments, and moisture from crude oil. The final product is refined oil that meets national edible oil standards in terms of acid value, color, and moisture content. It is suitable for the efficient refining of various common vegetable oils such as rapeseed, peanut, and soybean oil.

THREE TANK OIL REFINING EQUIPMENT SINGLE BATCH PRODUCTION OPERATING PROCESS:

① Startup Preparation: Inspect equipment, remove impurities from crude oil, prepare auxiliary materials, and preheat the system.

② Phospholipid Removal Tank: Crude oil enters the tank → Heat to 50-65℃ → Add water for reaction → Allow to settle and drain phospholipids → Transfer oil to the deacidification tank.

③ Deacidification Tank: Heat to 60-80℃ → Add alkali for neutralization → Allow to settle and drain soapstock → Wash with brine → Transfer oil to the dehydration and decolorization tank.

④ Dehydration and Decolorization Tank: Vacuumize → Dehydrate → Add bleaching earth for decolorization → Allow to settle → Transfer oil for filtration.

⑤ Finishing: Filter to obtain the finished product → Clean the equipment → Shut down the equipment.

If you would like to learn more about oil refining machinery, Please Click Here to contact Henan Oliver Technology Co., Ltd. We are dedicated to serving you!

Question 2-Product Parameter

OIL REFINING EQUIPMENT

Model	Refining Capacity	Tank Count	Tank Diamter	Power	Refining Function
OT-300D-1	600kg/day	1	700mm	20kw	Depdprozation
OT-300D-2	600kg/day	2	700mm	26kw	Degumming/Deacidification/Dehydration/Decolourisation
OT-500L	500kg/day	3	700mm	38.5kw	Degumming/Deacidification/Dehydration/Decolourisation
OT-1000L	1000kg/day	4	700mm	50kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization
OT-2000L	2000kg/day	4	900mm	72kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization
OT-3000L	3000kg/day	4	1100mm	132kw	Degumming/Deacidification/Dehydration/Decolourisation/Deodorization

Remarks：According to the client raw material and capacity, support customized service, large model heating method support conduction oil heating, can choose electric, coal and gas, details please contact customer us directly.

Question 3-Product Display

PRODUCT FUNCTION:

Dephosphorization, Deacidification, Decolorization, and Drying.

✅ Degumming: It removes phospholipids (including hydrated and non-hydrated phospholipids) from crude oil, while also removing some impurities such as colloids, proteins, mucus, and trace metal ions.

✅ Deacidification: To remove free fatty acids from the oil.

✅ Bleaching : To remove color pigments (e.g., chlorophyll, carotenoids) from the oil.

Send Inquiry

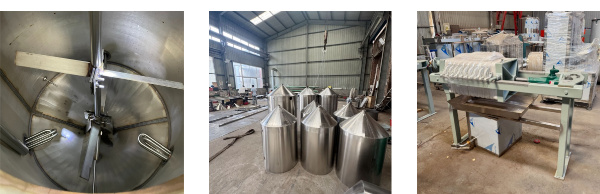

Oil Refining Equipment Details

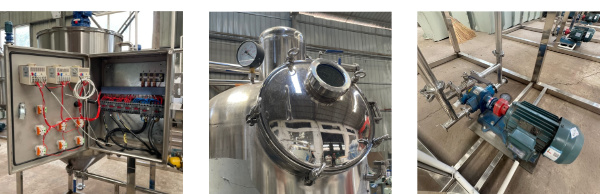

Oil Refining Equipment Details

Question 4-Application

EQUIPMENT APPLICATION SCENARIOS:

Target Users: Small and medium-sized vegetable oil processing plants, rural oil pressing workshops, grain and oil cooperatives, and start-up enterprises in deep processing of edible oils.

Refined crude oils: soybean oil, rapeseed oil, peanut oil, cottonseed oil, sunflower seed oil, sesame oil, flaxseed oil, safflower seed oil, camellia seed oil, rice bran oil, corn germ oil, palm oil, coconut oil, olive oil, cocoa butter, castor oil, tung seed oil, and other oilseeds.

Production Capacity Requirements: Daily capacity of 1-30 tons (calculated based on 3-6 hours per batch, 2-6 batches per day), suitable for small-batch, multi-variety oil refining production.

Application Scenarios: Local oil pressing with refining, small-batch bottling and sales of finished oil, customized refining of edible oils for the catering industry, etc.  It can be directly implemented in the oil pressing plant workshop, achieving integrated "oil pressing + refining" production.

Question 5-FAQ

Q1: What is the MOQ for your machine?

A: Our MOQ is 1 sets. And any order quantities are highly appreciated.

Q2: Can I get a sample of your machine?

A: Yes, surely, we would like to provide the sample, you just pay for the sample and delivery prime cost.

Q3: What is your guarantee period for your machine?

A: Our machine guarantee period is 12 months, and we also provide 24 hours on-line service if any problems happen.

Q4: Do you accept OEM & ODM?

A: Yes, OEM & ODM projects are available. You are warmly weclome to have your own color, logo, company name, contacts and any design on the machine. Even we are willing to design the color, logo, packages for you.

Q5: Can I test your machine with the raw material when visiting your factory?

A: Yes, surely, any testing our machine with the raw material is highly appreciated.

Q6: What payment do you accept?

A: We accept T/T,Western Union,Paypal,L/C,etc.Normally you need pay 30% deposit in advanced,70% balanced before shipping.

Q7: What's the production time?

A:Usually 5-7 days for MOQ.Other quantity and OEM orders please confirm with us.

Question 6-Our service

OUR ADVANTAGES:

1: Integrated Production and Trade with Quality Control

We own a modern production base and independently research and manufacture core components. Every stage, from raw material selection to processing, undergoes strict quality control.

2: Complete Product Range and Comprehensive Coverage

We offer screw-type, hydraulic, and fully automatic oil presses to meet the needs of different oilseed crops, production capacities, and process flows, and support customized fully automated production lines.

3: Advanced Technology and Customized Solutions

We provide personalized solutions based on your factory space, raw material characteristics, budget, and target output, truly offering a "one-factory, one-solution" approach.

4: Global Service and Full-Cycle Support

We provide comprehensive technical guidance, including factory planning, equipment installation, commissioning, and operation training.
